What is a VSD compressor and how soes it work?

January 12, 2023

5 minutes

There is a lot to consider when looking at different air compressors for your business. It is hard to know where to start. One of the most popular air compressor choices is a VSD compressor. VSD stands for variable speed drive. But what does variable speed drive mean? VSD is a technology that automatically adjusts the compressor’s motor speed to the compressed air demand in real-time.

A variable speed drive or VSD Compressor can save a lot of energy and money. Depending on which type of VSD compressor you use, energy consumption could drop by up to 60%.

To understand how this is possible, we must first look at a VSD compressor’s different components.

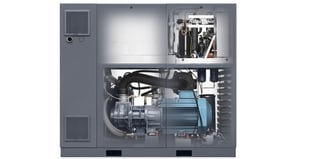

The motor and inverter

To adjust the compressors speed (RPM), an inverter is needed. Instead of sending all the power directly into a traditional AC motor that runs at full capacity, the inverter provides the VSD compressor only with the specific frequency required to meet whatever the current demand requires.

The element

The best compressor to be a VSD compressor is a rotary screw compressor. It’s flow rate and power consumption are virtually proportional to speed, meaning the motor adapts its speed to reflect the current demand and the rotary screw elements adapt in sync so the amount of compressed air being delivered matches that demand.

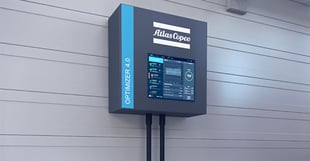

The brain

Variable speed drive, or VSD is a smart technology that requires a “brain”. In the case of our VSD compressors, that is the Elektronikon® on-board controller. Sensors continually measure system pressure, temperature, and in the latest premium VSD compressor, even relative humidity. In response to this data, the system adjusts the motor speed to meet the actual air demand.

It is easy to see that when the air demand of an operation fluctuates, a VSD compressor excels, this is because, while air is free, power is not. Therefore, a compressor that can adjust the amount of power it uses with the needs of the operation is able to save you energy and money.

VSD compressor vs. fixed speed compressor: what's the difference?

To fully appreciate the value of a VSD compressor, it helps to understand how it compares to a traditional fixed speed compressor. A fixed speed compressor operates at a constant motor speed regardless of how much compressed air is actually needed at any given moment. This means that even during periods of low demand, the compressor continues to run at full power, consuming energy unnecessarily and leading to higher operating costs over time.

A VSD compressor, by contrast, continuously matches its motor speed to the actual air demand of your operation. When demand is low, the motor slows down and uses less energy. When demand rises, the motor speeds up accordingly. This dynamic response eliminates the energy waste associated with fixed speed operation and is the primary reason VSD compressors can reduce energy consumption by up to 60% compared to their fixed speed counterparts.

Beyond energy savings, VSD compressors also deliver more stable system pressure. Because the motor is constantly adjusting to maintain the precise pressure level required, pressure fluctuations are minimized, which translates to more consistent performance for your tools, processes, and downstream equipment.

Key benefits of a VSD compressor

Investing in a VSD compressor offers a range of operational and financial advantages that go beyond energy savings alone:

Energy efficiency: By matching motor speed to real-time air demand, a VSD compressor eliminates the energy wasted during unloaded or partial-load operation, one of the biggest sources of inefficiency in compressed air systems.
Reduced operating costs: Lower energy consumption directly translates to lower electricity bills. Over the life of the compressor, these savings can be substantial, often offsetting the higher initial investment of a VSD unit compared to a fixed speed model.
Extended component life: Because a VSD compressor avoids the repeated stop-start cycles of a fixed speed machine, there is significantly less mechanical stress on the motor, bearings, and other internal components. This reduces wear and tear, lowers maintenance frequency, and extends the overall service life of the compressor.
Quieter operation: At lower demand levels, a VSD compressor runs at reduced motor speeds, which means less noise. This can be a meaningful advantage in facilities where noise levels are a concern.
Smaller carbon footprint: Reduced energy consumption also means a lower environmental impact, making VSD compressors a smart choice for businesses with sustainability goals.

Is a VSD compressor right for your operation?

A VSD compressor delivers the greatest value in operations where compressed air demand fluctuates throughout the day, which describes the majority of industrial and commercial facilities. If your air demand is relatively constant and continuous, a fixed speed compressor may still be a viable and cost-effective option. However, if your demand varies, even modestly, a VSD compressor will almost always deliver better energy efficiency and lower total cost of ownership over time.

Common applications that benefit significantly from VSD compressors include general manufacturing, automotive production, furniture manufacturing, plastics and rubber processing, and metal fabrication, anywhere that tools, actuators, and pneumatic systems cycle on and off throughout a shift.

To learn more about our VSD compressors, read our e-book today.

If you are not sure if a VSD compressor is right for you, please contact our experts.

FAQS

What is a VSD compressor?

A VSD compressor, or variable speed drive compressor, is an air compressor that uses variable speed drive technology to automatically adjust its motor speed in response to real-time compressed air demand. Rather than running at a constant speed like a fixed speed compressor, a VSD compressor speeds up when more air is needed and slows down when demand drops, delivering only the compressed air required at any given moment. This makes VSD compressors significantly more energy efficient than traditional fixed speed models.

How much energy can a VSD compressor save?

Depending on the application and the variation in air demand, a VSD compressor can reduce energy consumption by up to 60% compared to a fixed speed compressor. The greater the fluctuation in your compressed air demand, the more energy a VSD compressor will save. Since energy typically accounts for up to 80% of a compressor's total lifetime cost, these savings can have a significant impact on your operating costs over time.

What type of compressor works best as a VSD compressor?

The rotary screw compressor is the most compatible and most effective type of compressor to pair with VSD technology. This is because a rotary screw compressor's flow rate and power consumption are virtually proportional to its operating speed, allowing the VSD system to scale output up or down smoothly and efficiently in line with changing air demand.

How does the Elektronikon® controller enhance VSD compressor performance?

The Elektronikon® is Atlas Copco's on-board intelligence system for VSD compressors. It continuously monitors key system parameters, including pressure, temperature, and in the latest premium models, relative humidity, and uses this real-time data to precisely adjust the motor speed. This ensures the compressor always delivers the exact amount of compressed air needed, no more and no less, maximizing energy efficiency and maintaining stable system pressure at all times.

Is a VSD compressor more expensive than a fixed speed compressor?

A VSD compressor typically has a higher initial purchase price than a comparable fixed speed model. However, the energy savings generated over the life of the compressor, which can be as much as 60%, generally result in a significantly lower total cost of ownership. For most operations with variable air demand, the return on investment from a VSD compressor is compelling, often recovering the price difference within a relatively short period of time.

What industries benefit most from VSD compressors?

VSD compressors are well suited for a wide range of industries where compressed air demand fluctuates throughout the day. General manufacturing, automotive production, furniture manufacturing, plastics and rubber processing, and metal fabrication are all strong candidates. Any industrial or commercial operation that relies on pneumatic tools, actuators, or other air-powered equipment that cycles on and off during a shift can benefit from the energy efficiency and performance consistency that a VSD compressor delivers.
