How it Works: Liquid Ring Pump

When it comes to different technologies for industrial vacuum applications, none have been around as long as liquid ring. Originally developed at the turn of the 20^th century, this relatively unchanged technology is still a common product used today.

How does a liquid ring pump work?

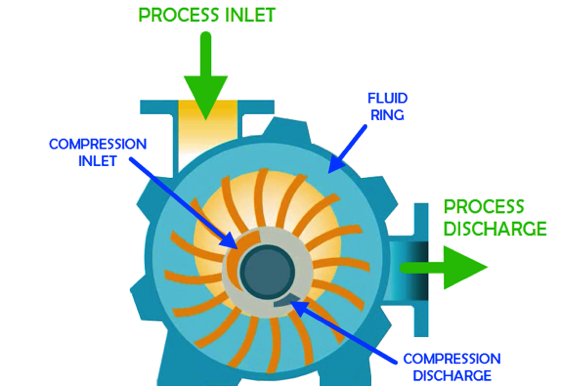

The principle is simple. An offset rotor is placed in a cylindrical housing, and fluid (typically water) is fed into this housing. As the rotor spins, the water is thrown by centrifugal force to the outside, similar to a washing machine. The void created in the center holds gas drawn in through the inlet port of the pump. As the gas travels around the pocket of air in the center, it is compressed. This compressed air is then fed back out through the discharge port.

What industries use liquid ring pumps?

Numerous industries use liquid ring pumps. The fluids within the compression chamber make the technology beneficial to many applications, from pharmaceutical production to textile manufacturing. Since the gas and anything else in the process is washed through the fluid, liquid ring pumps have a high tolerance for contaminates. Particulates, impurities and caustic substances are diluted and discharged with the fluid. This makes liquid ring pumps particularly useful in harsh environment, such as extreme humidity.

Are there different types of liquid ring pumps?

While the structure of liquid ring pumps is largely the same, there are three different varieties of fluid systems:

1. Once Through: In a once through system, water is continuously fed into and right back out of the pump. Two major issues with this system are the water cost and cost of water disposal. If the water is contaminated, it will need to be cleaned prior to disposal.
2. Partial Recovery: In a partial recovery system, some of the fluid remains in the pump for an extended amount of time. As some of the fluid leaves the pump, the reservoir continues to feed the pump to replenish it.
3. Full Recovery: In a full recovery system, the fluid is contained in a closed-loop system and is continuously recycled.

To learn more about liquid ring pumps, check out this video of a liquid ring pump undergoing humidity testing. Do you use liquid ring pumps in your application? Let us know in the comments below.
